Ford Racing Twin Turbo 450 HP F-150 Raptor 3.5L EcoBoost Crate Engine

Description

Buy Ford 3.5L EcoBoost Raptor Crate Engine

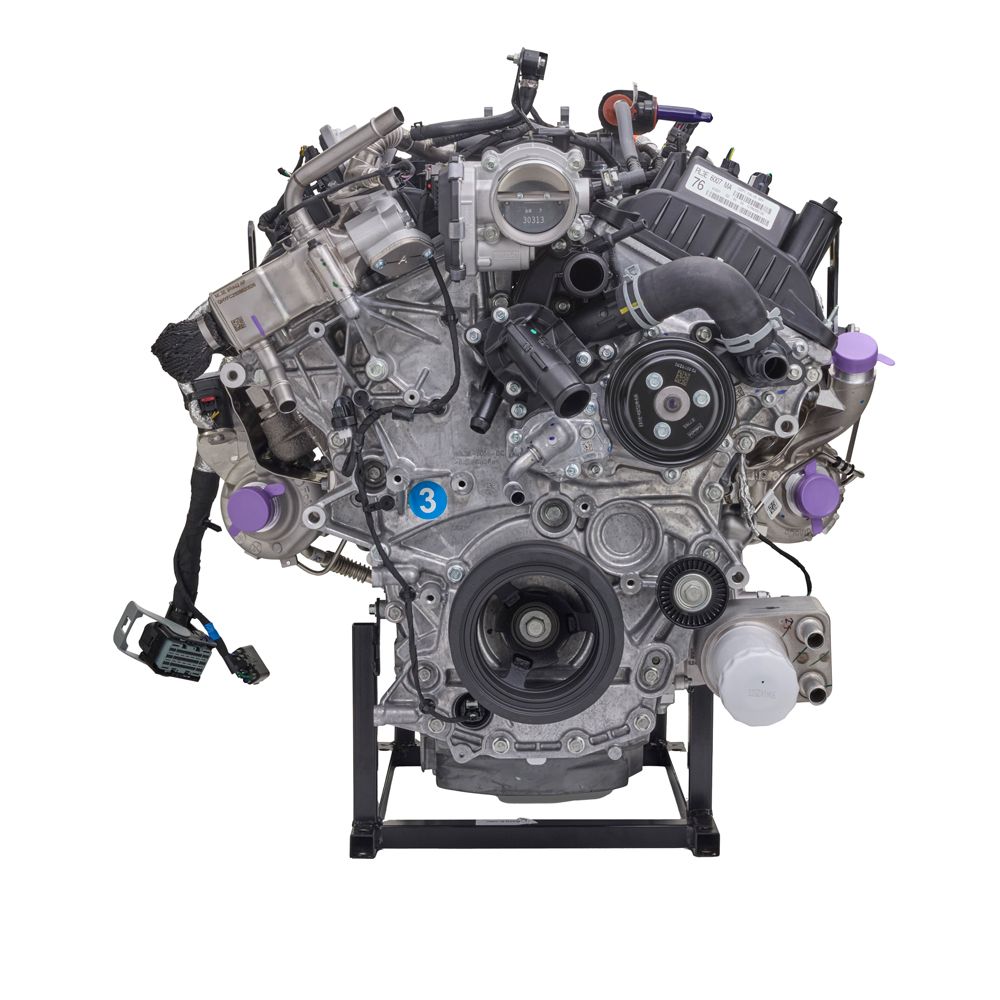

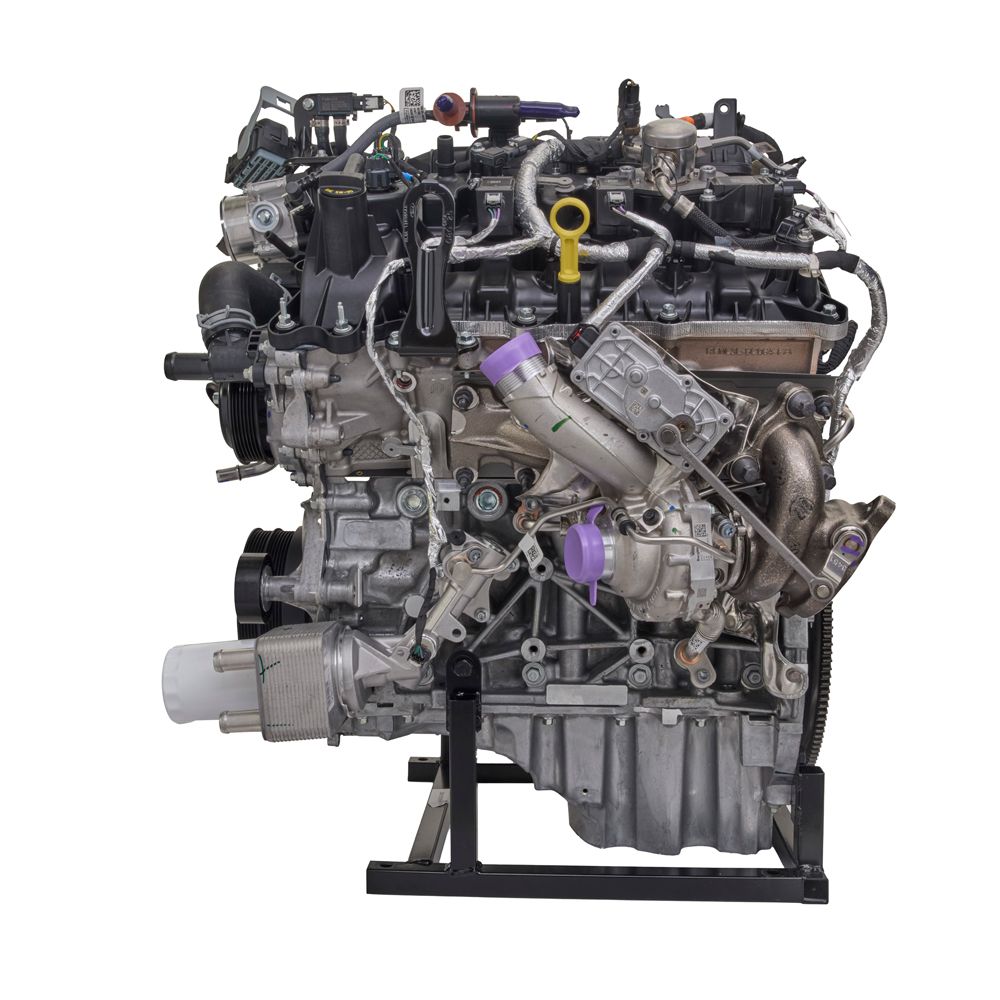

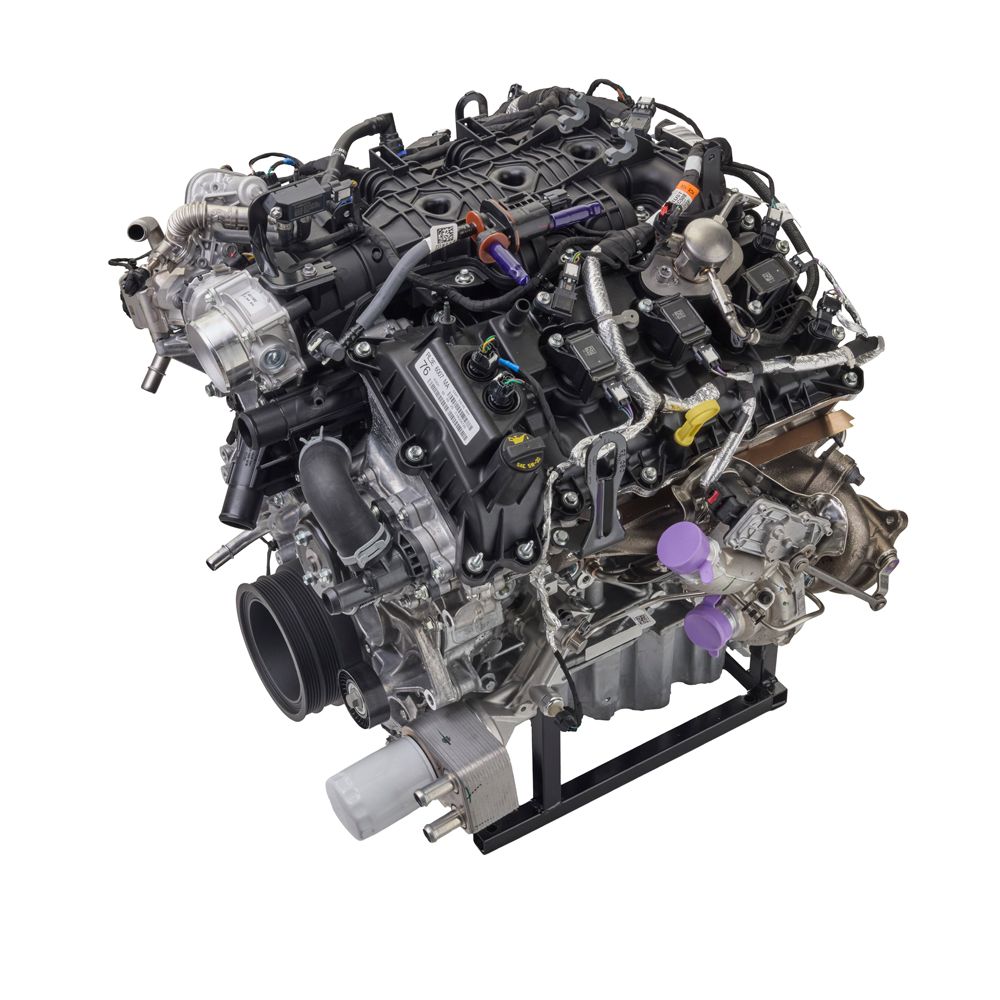

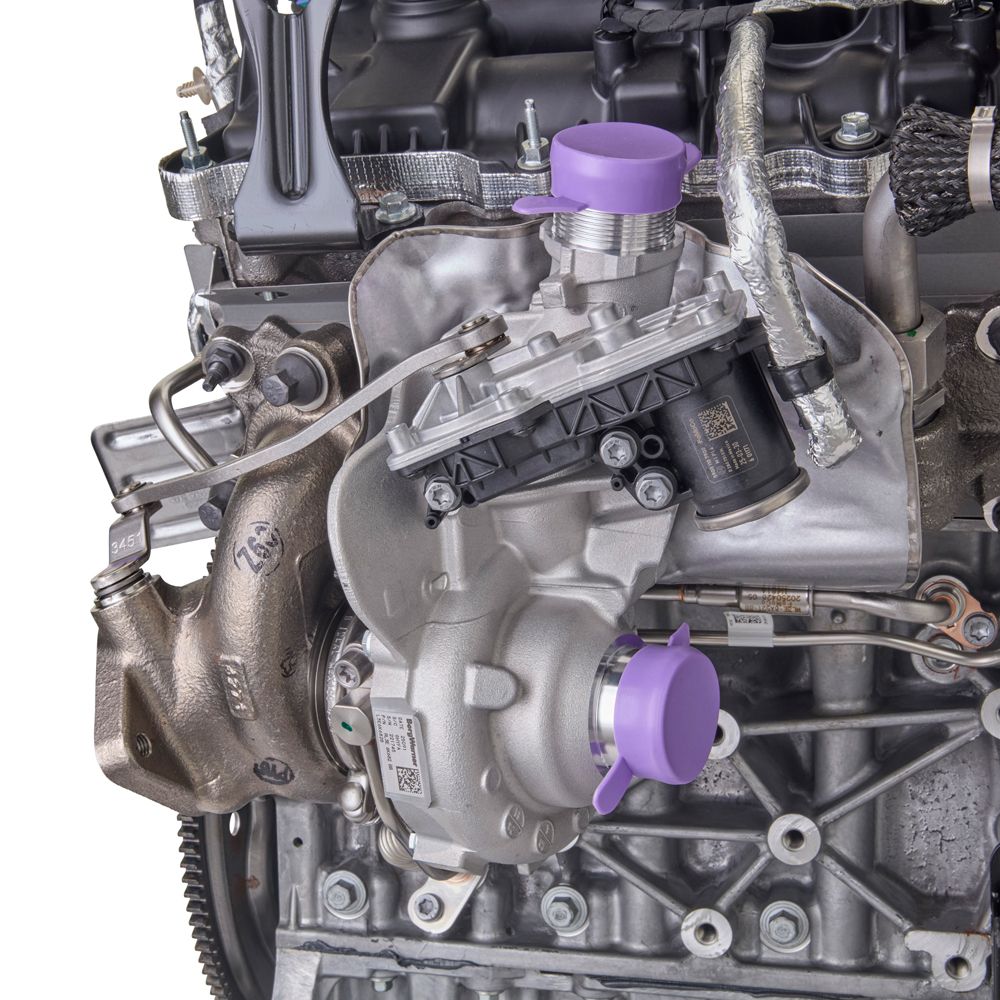

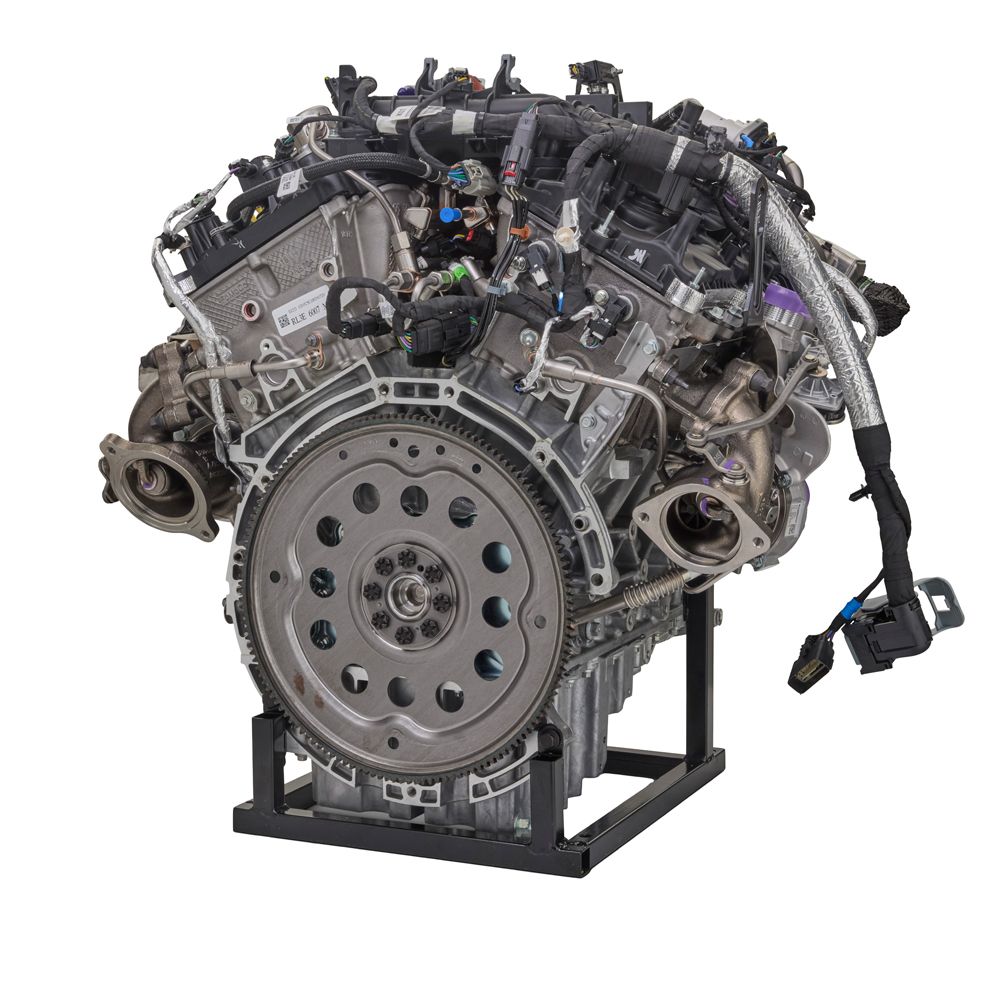

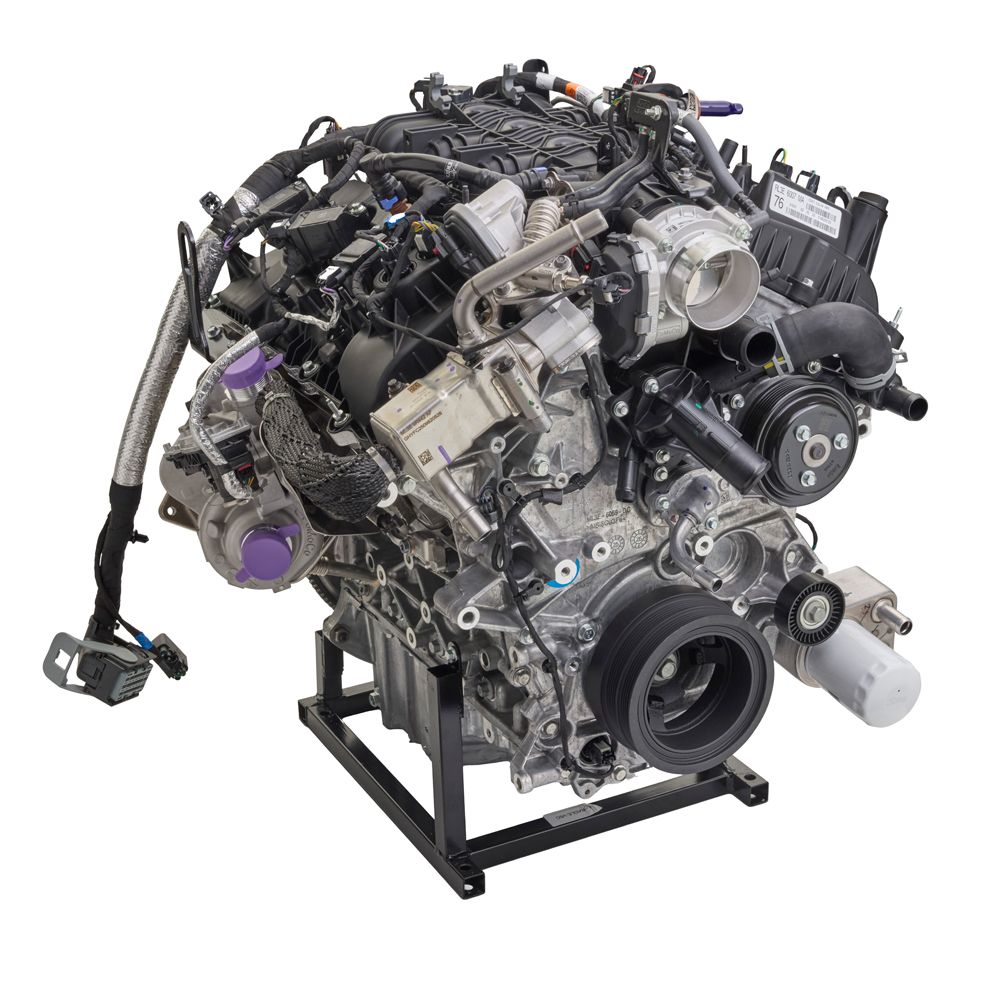

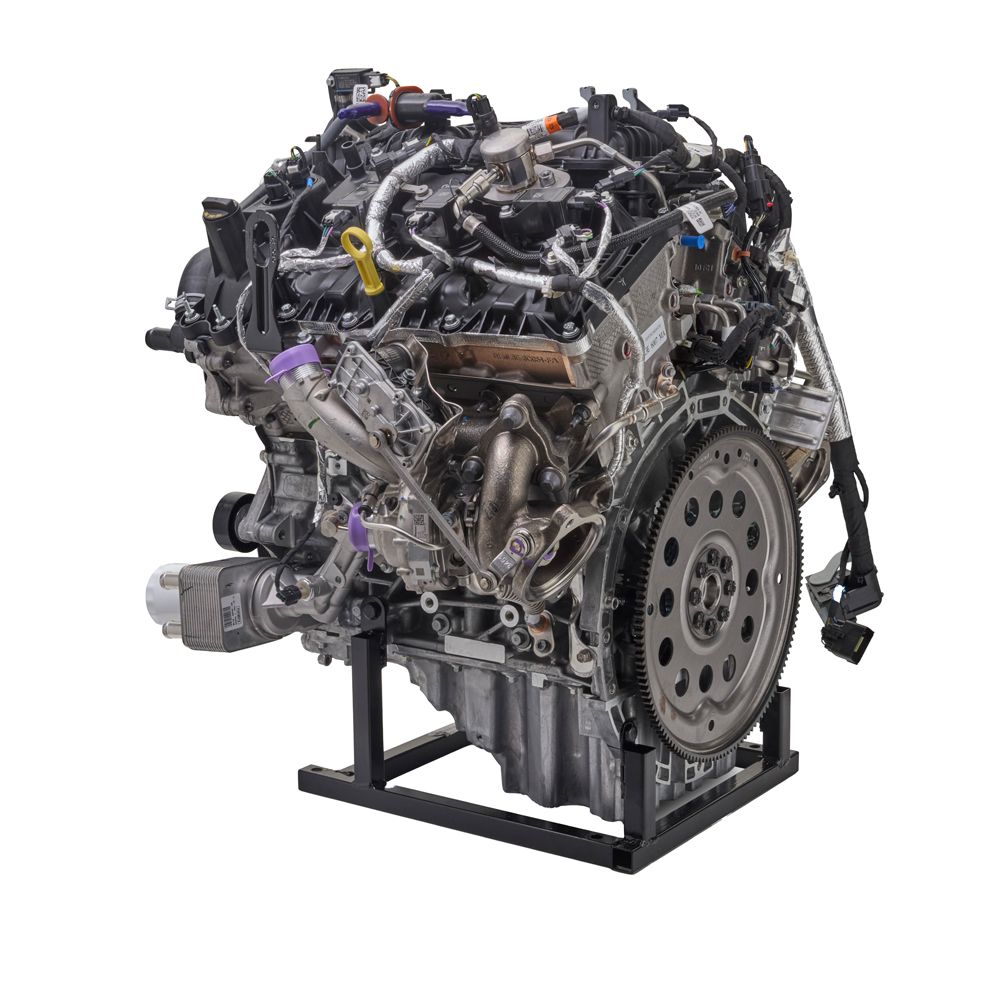

The Ford Performance 3.5L EcoBoost High-Output Crate Engine (Part Number: M-6007-35TA) brings the legendary desert-racing power of the F-150 Raptor to the aftermarket. This is not the standard 3.5L found in a base F-150; it is the 450 HP High-Output (HO) variant featuring upgraded internals and twin turbochargers designed for extreme thermal loads. In 2026, this engine has become the gold standard for builders who want massive torque and modern efficiency without the weight and bulk of a traditional V8.

Technical Specs: Ford Performance M-6007-35TA

The Ford Performance M-6007-35TA specs showcase a masterpiece of modern “downsizing” technology, delivering power that rivals many large-displacement engines while weighing significantly less.

• Horsepower: 450 HP @ 5,500 RPM.

• Torque: 510 lb-ft @ 3,500 RPM.

• Compression Ratio: 10.0:1 (Optimized for boost).

• Construction: All-aluminum die-cast block with 6-bolt press-fit main bearing caps.

• Internal Upgrades: Fully counterweighted forged steel crankshaft and high-strength forged powder metal connecting rods.

• Fueling: High-pressure direct injection combined with Port Fuel Injection (PFDI) for a cleaner intake and better fuel delivery.

Advanced Engineering: F-150 Raptor High-Output Engine Details

When you choose a Ford F-150 Raptor high-output engine replacement, you benefit from several Raptor-specific enhancements:

• Piston Cooling Jets: Spray oil onto the underside of the pistons to manage heat during high-speed desert runs or heavy towing.

• Twin Independent Variable Cam Timing (Ti-VCT): Optimizes valve timing across the entire powerband for instant throttle response.

• Lightweight Pistons: High-strength aluminum pistons with a low-friction skirt coating to reduce internal parasitic loss.

• Composite Intake: A tuned composite upper and lower intake manifold designed for maximum airflow and heat resistance.

Installation Notes for Custom Builds

The EcoBoost crate engine for custom builds is a popular choice for restomod Broncos, Mustangs, and vintage trucks, but there are critical installation factors to keep in mind:

• Engine Weight: At only 417 lbs (without accessories), it significantly improves the weight distribution of older vehicles.

• Control Systems: Note that this crate engine (M-6007-35TA) does not include a control pack. Builders must source an aftermarket ECU or a stand-alone engine management system to handle the direct injection and twin-turbo controls.

• Oil System: Includes a 6-quart die-cast aluminum deep sump oil pan, which may require modification for certain low-clearance street rod frames.

Market Value: 450 HP Twin Turbo V6 Crate Engine Price

In early 2026, the 450 HP twin turbo V6 crate engine price typically ranges around $9,350 to $9,800 USD. While more expensive than a basic long block, this “complete” crate engine includes the turbochargers, manifolds, and high-pressure fuel system, providing a massive head start for any high-performance project.

Quick Component Checklist

This Raptor HO engine is the perfect powerplant to give your project truck supercar-level torque! Click here to message us on WhatsApp right now
