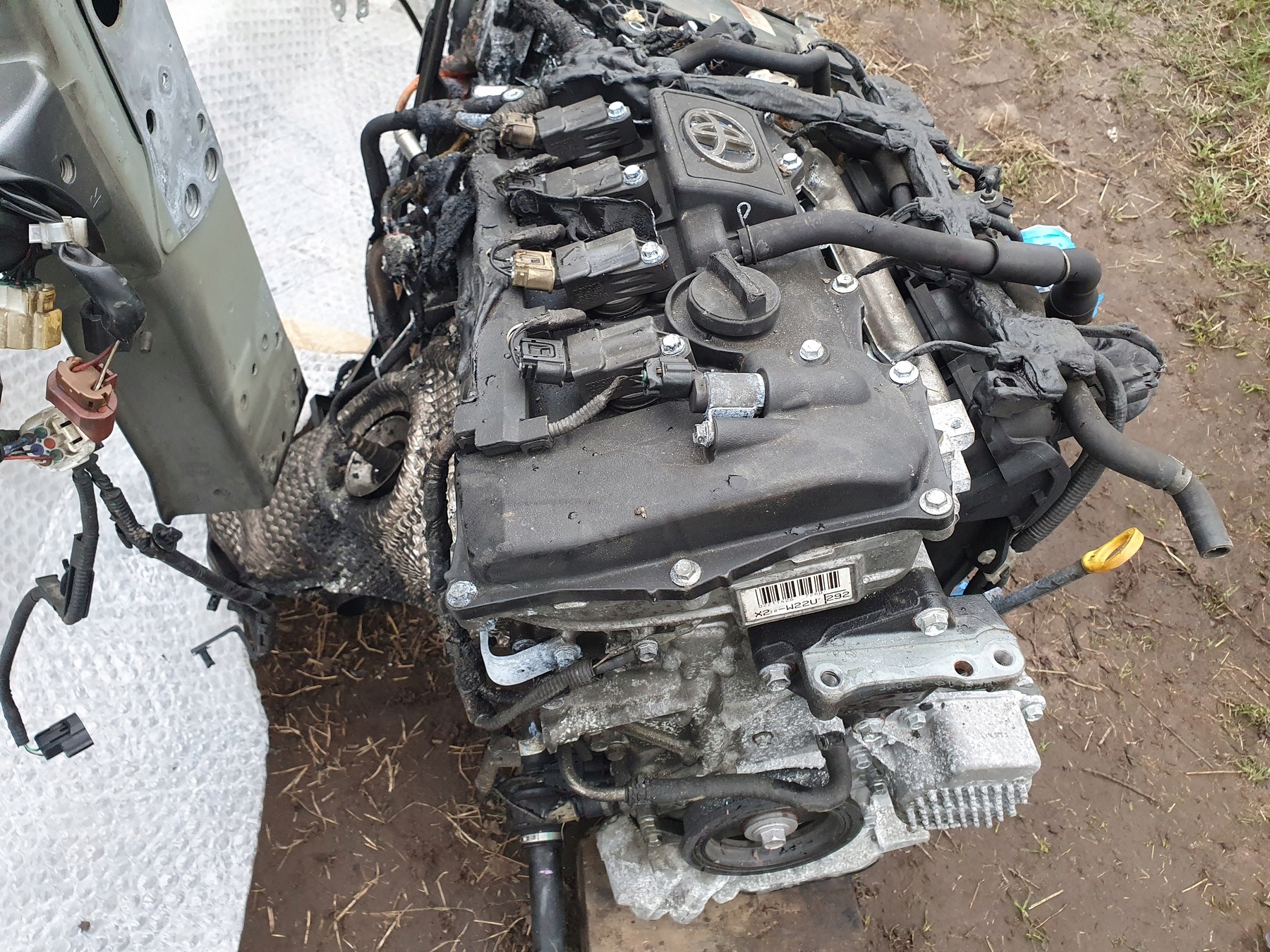

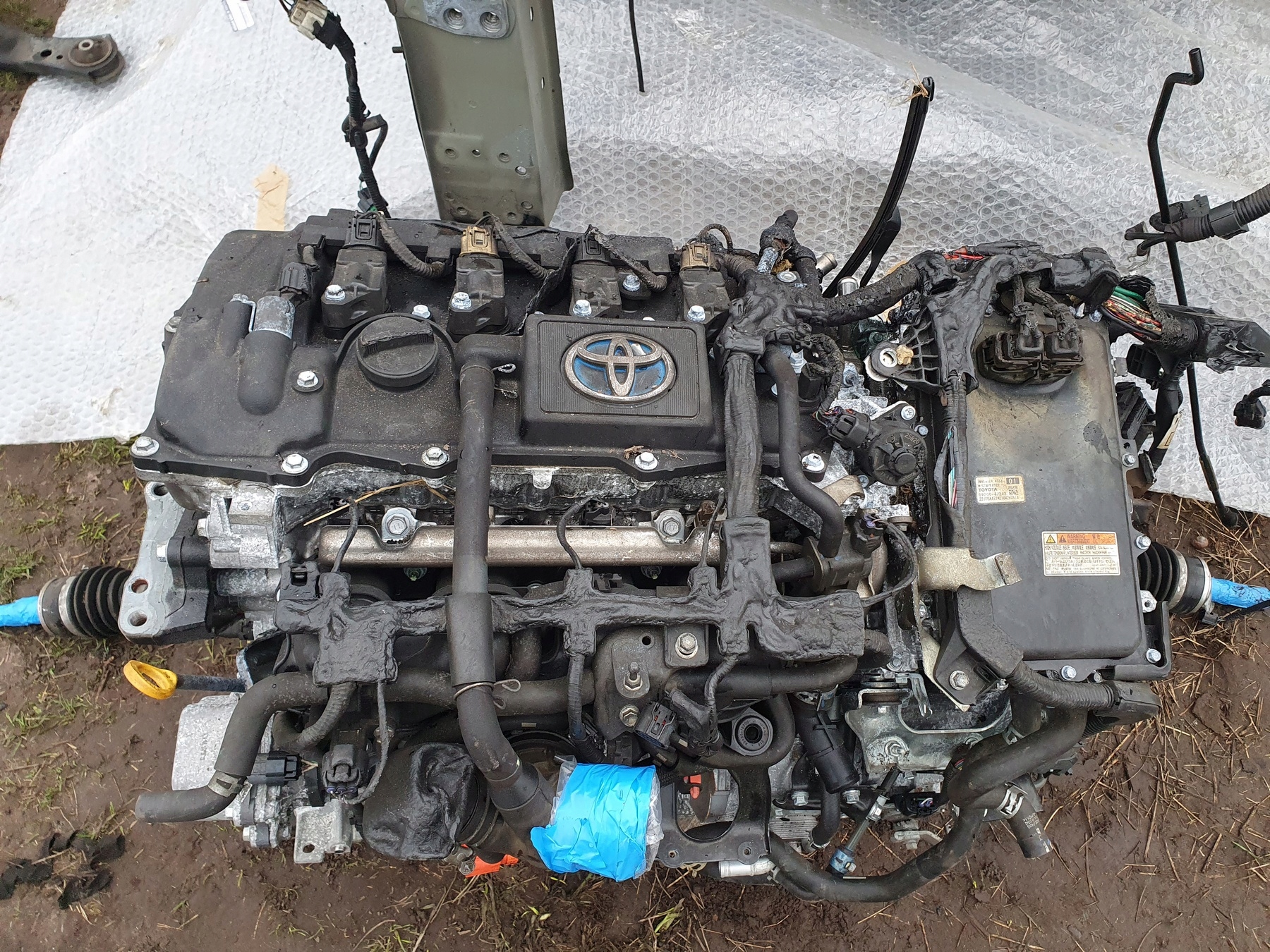

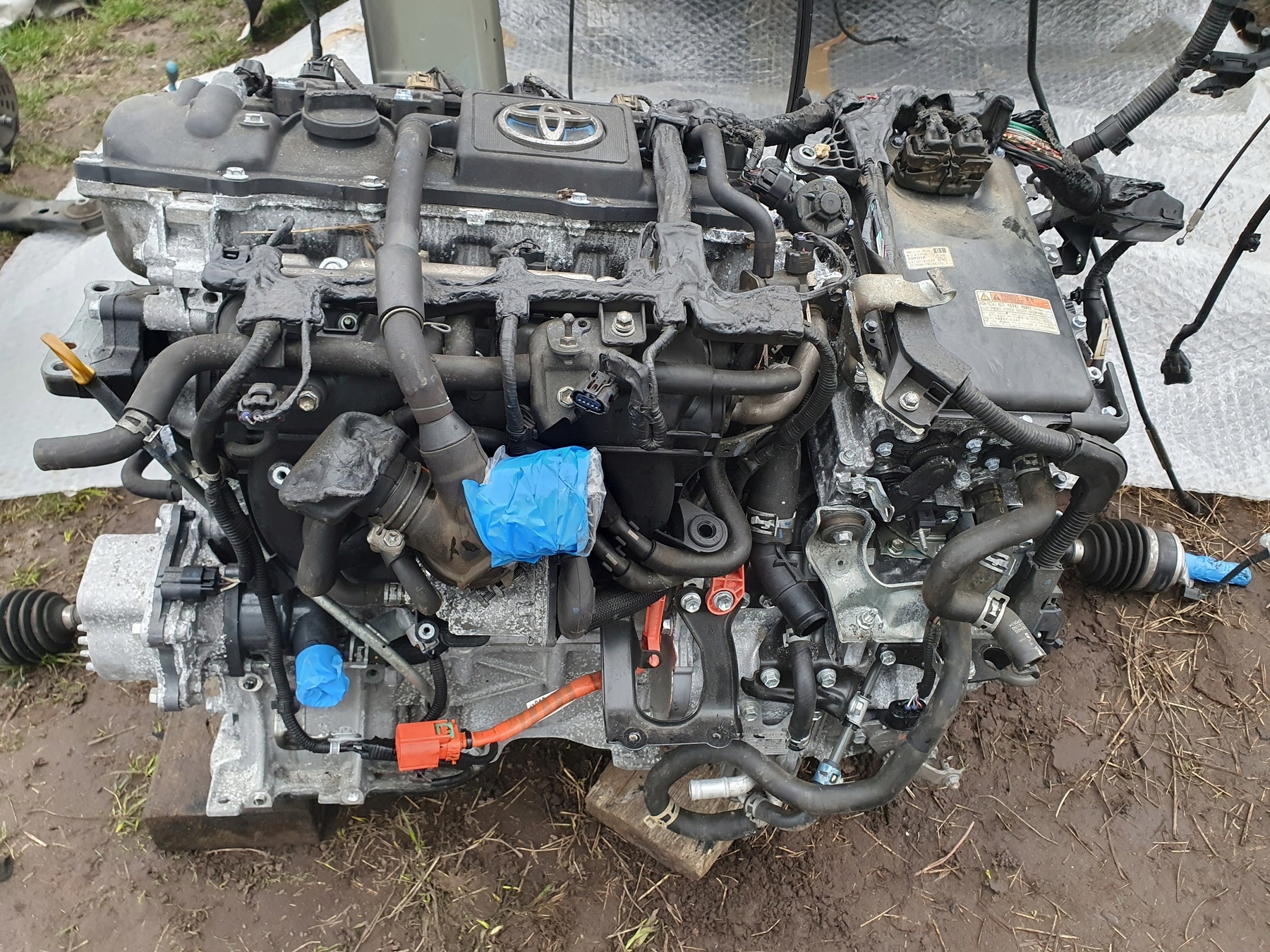

Buy Toyota 1.8H 2ZR-FXE Engine
When you choose a Toyota 1.8H (2ZR-FXE) or 2.0H (M20A-FXS) engine, you are selecting the backbone of Toyota’s world-leading hybrid lineup. While the 1.8L 2ZR has been the reliable standard for the Prius and C-HR for years, the newer 2.0L M20A “Dynamic Force” engine offers a significant leap in thermal efficiency (up to 41%) and power. In 2026, these engines are the top choice for owners looking to maintain the high-mileage dependability and low-emissions profile that Toyota hybrids are known for across the globe.
Technical Comparison: 1.8H 2ZR vs. 2.0H M20A
| Feature | 1.8L Hybrid (2ZR-FXE) | 2.0L Hybrid (M20A-FXS) |
| Engine Series | ZR Series (Standard) | Dynamic Force Series |
| Bore x Stroke | 80.5 x 88.3 mm | 80.5 x 97.6 mm |
| Compression Ratio | 13.0:1 | 14.0:1 |
| Fuel System | SFI (Sequential Fuel Injection) | D-4S (Direct & Port Injection) |
| Engine Output | Approx. 97–98 HP | Approx. 150–152 HP |
| Key Advantage | Extreme Long-Term Reliability | High-Speed Combustion & Power |
Installation Guide: Intake Manifold & Gasket Service
Correct Toyota C-HR hybrid engine installation of the intake manifold is critical. On these hybrid models, a leaking manifold gasket or a clogged EGR (Exhaust Gas Recirculation) port can lead to the infamous “engine rattle” during cold starts.
1. Preparation and Removal
-
Disconnect Battery: Always disconnect the 12V battery before working on engine electronics.
-
Component Access: Remove the air cleaner assembly, throttle body (keep coolant lines attached if possible), and the EGR pipe assembly.
-
Clearance: Disconnect the MAP sensor and vacuum switching valve (VSV) connectors.
2. Manifold Installation Steps
-
Surface Prep: Clean the mating surfaces on the cylinder head thoroughly. Do not use metal scrapers on the aluminum head.
-
New Gasket: Always install a new No. 1 intake manifold-to-head gasket. Reusing old gaskets is the primary cause of P0171 (Lean) codes.
-
Torque Sequence: Start from the center bolts and work your way outward in a criss-cross pattern to ensure an even seal.
3. Critical Torque Specifications
| Component | Torque (Metric) | Torque (Standard) |
| Intake Manifold Bolts/Nuts | 28 N·m | 21 ft·lbf |
| Throttle Body Bolts | 9.0 N·m | 80 in·lbf |
| EGR Pipe Bolts | 21 N·m | 15 ft·lbf |
| Dipstick Guide Bolt | 21 N·m | 15 ft·lbf |
Performance Note: The M20A “Dynamic Force” Advantage
The Toyota Corolla 2.0H M20A-FXS specs highlight the use of laser-cladded valve seats and a longer stroke-to-bore ratio. This design creates a high-tumble intake flow, which allows the engine to burn fuel much faster and more completely than the 2ZR. If you are swapping or replacing an M20A, ensure that the high-pressure fuel pump (driven by the exhaust camshaft) is handled with extreme care to avoid damage to the precision-profiled cam.
These hybrid powerplants are tested and ready to restore your vehicle’s efficiency! Click here to message us on WhatsApp right now
